Bug #29224

closed

FSR - Issues with Non standard ASIL Safety Goal

Added by Vani Kunnatheri 8 months ago. Updated 7 months ago.

Status:

Closed

Priority:

Medium

Assignee:

Manivannan Uppiliappan

Start date:

10/09/2024

Due date:

% Done:

Estimated time:

Steps To Reproduce:

1.Log into FSR
2.Locate a standard safety goal
3.Add a function and Requirement
4.Locate a non standard safety goal.
5.Add the same function and Requirement
6.Decompose the standard Function
7.By adding the first function, observe the reqt asil column of both .

MODULES:

FST

Build Cycle:

Cycle 1

Customer:

Issue Dependency:

Dev Commitment to Resolve in::

Description

1. Allocate ASIL context menu is not working for the Nonstandard ASIL Safety Goal

2. When decomposing a nonstandard ASIL function, HELP icon is not displaying in the Reqt ASIL column.

3. I added an FSR function and requirement against the standard safety goal, and then used the same function against the non-standard safety goal. The ASIL values displayed in the Reqt ASIL column was wrong . However, when I decomposed the standard function, adding the function alone caused the Reqt ASIL column for the non-standard ASIL to display the 'standard ASIL' value. When I added the requirement, it displayed again incorrectly.

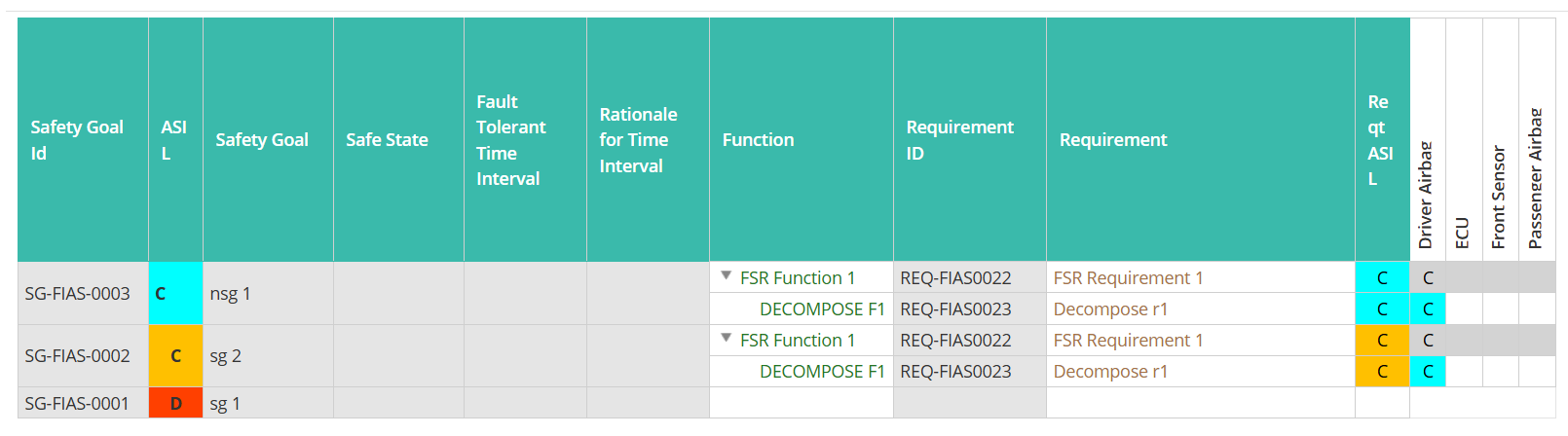

But the allocations against the standard function displays Non standard value (refer screenshot :allocation)

Files

Download all files

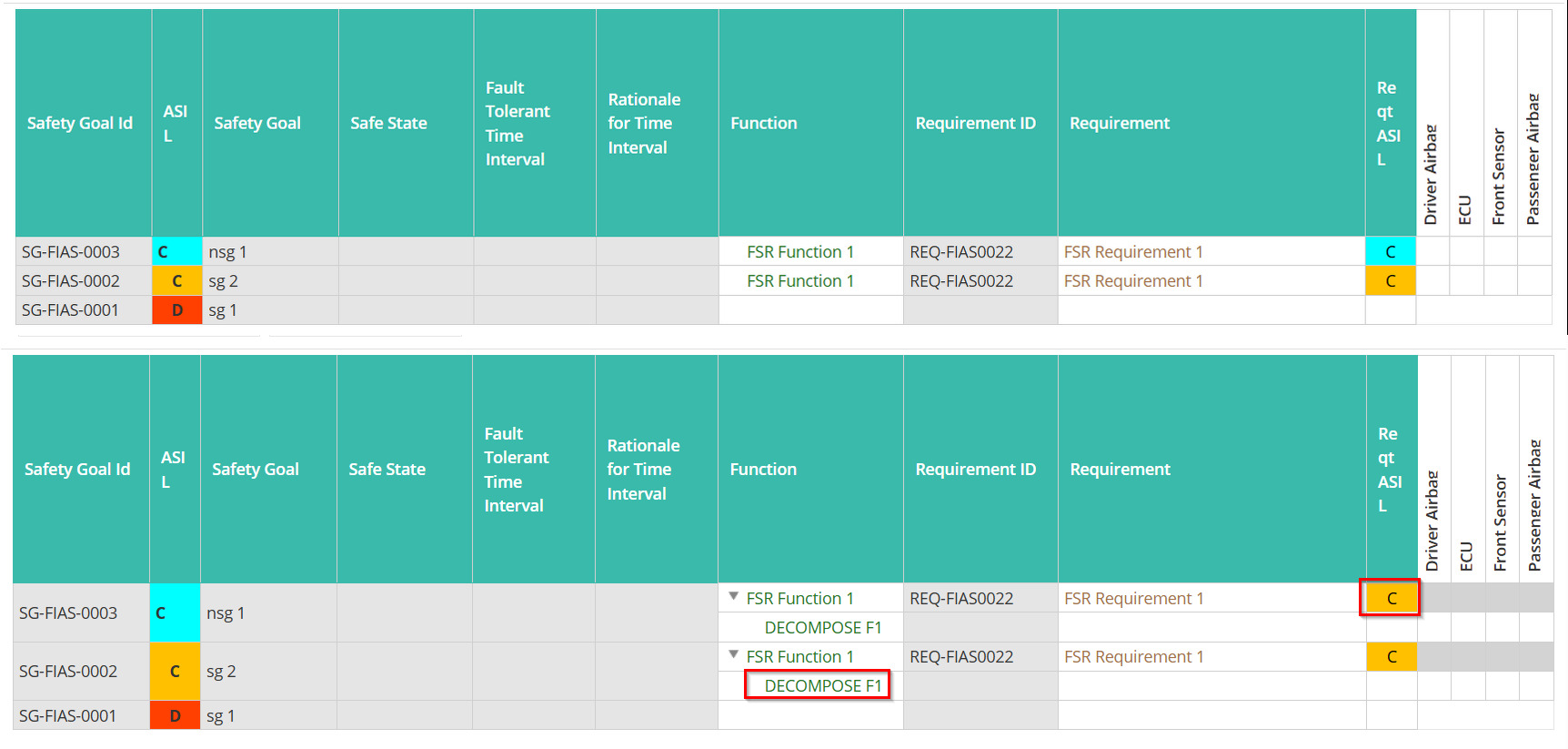

combined (16).jpg (233 KB) combined (16).jpg		Vani Kunnatheri, 10/09/2024 05:32 PM
allocation.png (61.9 KB) allocation.png		Vani Kunnatheri, 10/09/2024 07:27 PM
