Bug #29303

closed

Block Diagram - When clicking and dragging to change the source element from parent to child, and then moving the scope box, the interface line does not move along with the scope box.

Added by Gopinath Ramamoorthy 8 months ago. Updated 7 months ago.

Status:

Closed

Priority:

Medium

Assignee:

Reng Raj

Start date:

10/25/2024

Due date:

% Done:

Estimated time:

Steps To Reproduce:

1. Log in to the RFD.
2. Select the Block Diagram.
3. Select the PI.
4. Draw an interface line between two elements.
5. Select the interface line and change the line style.
6. Select the line, click and drag change the source element from parent to child element.
7. Select the Scope box, click and drag.
8. Observe the result - The interface line is not moving along with the elements.

MODULES:

RFD

Build Cycle:

Cycle 1

Customer:

Issue Dependency:

Dev Commitment to Resolve in::

Description

Block Diagram - When clicking and dragging to change the source element from parent to child, and then moving the scope box, the interface line does not move along with the scope box.

Files

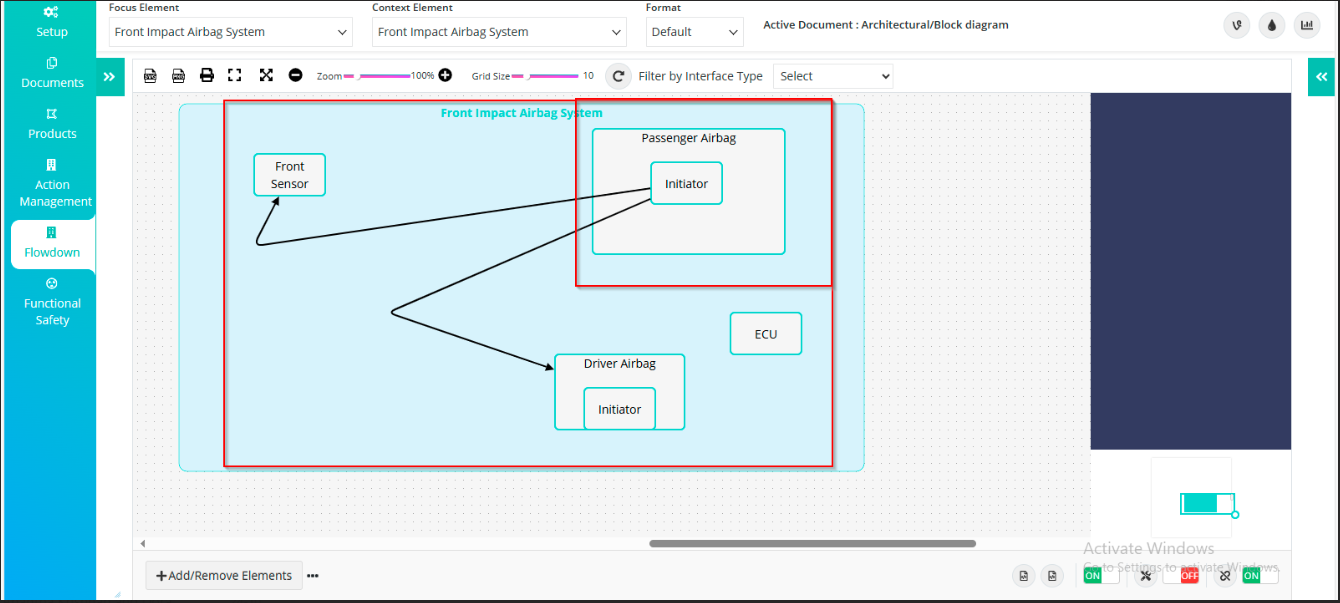

Gopinath Ramamoorthy, 10/25/2024 10:26 AM
