Bug #29297
closedFSR - Non standard ASIL Decomposition Issues
Start date:
10/24/2024
Due date:
% Done:
0%
Estimated time:
Steps To Reproduce:
1.Log into FST
2.Locate a Non standard ASIL safety goal
3.Decompose it into 2 functions and requirements
4.For the second function add two requirements
5.Please observe
MODULES:
FST
Build Cycle:
Cycle 1
Customer:
Issue Dependency:
Dev Commitment to Resolve in::
Description
1.Unable to decompose a non-standard ASIL function if no elements are added (Pop up displays but added function doesn't get updated)
2.Unlike standard ASIL, non-standard ASIL displays a HELP icon upon adding the first decomposition function and requirement.
3.The HELP icon of a requirement branch displays an empty 'Add ASIL' pop-up for non-standard ASIL decomposition.
(I decomposed the function into 2 functions , the second function has two requirements . The last added requirement is showing empty add asil pop up)
Files

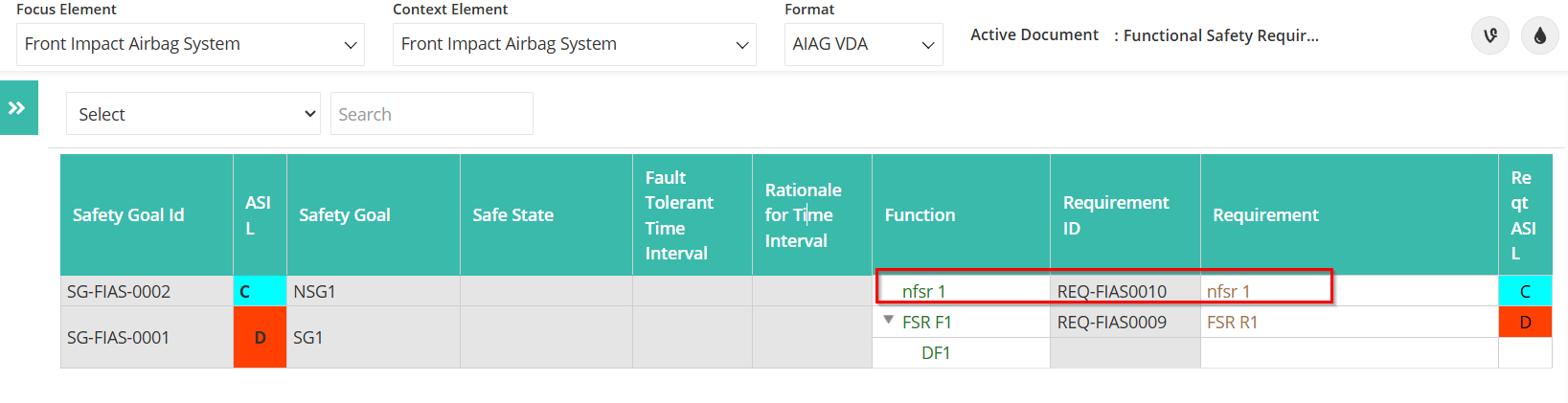

| clipboard-202410241122-2l7x3.png (59.7 KB) clipboard-202410241122-2l7x3.png | Unable to decompose a non-standard ASIL function if no elements are added | ||

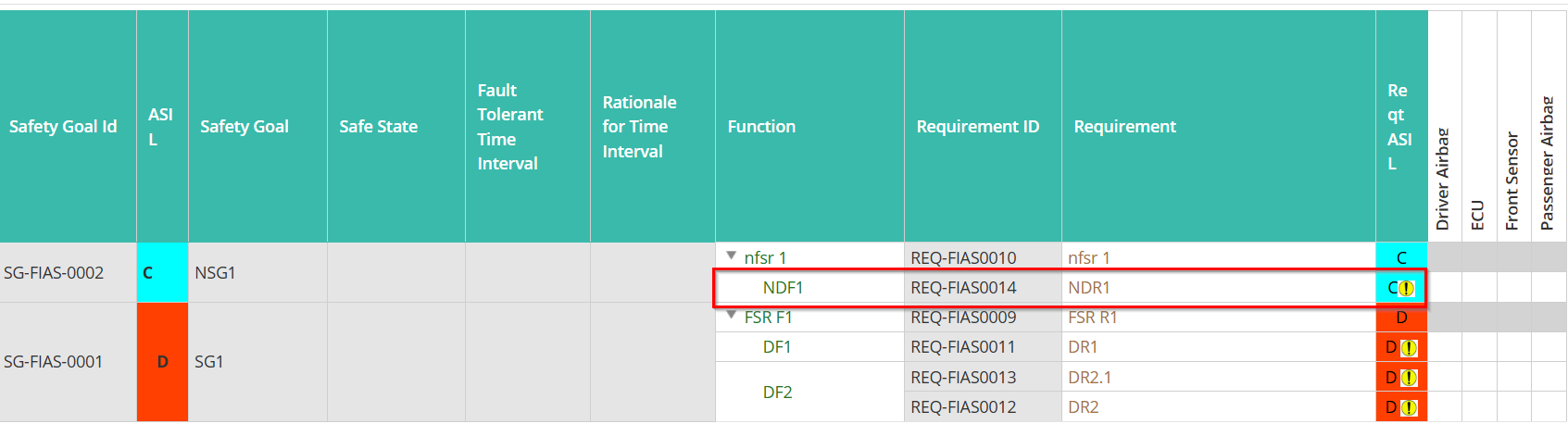

| clipboard-202410241123-tn6b7.png (74 KB) clipboard-202410241123-tn6b7.png | HELP icon for the first function and requirement | ||

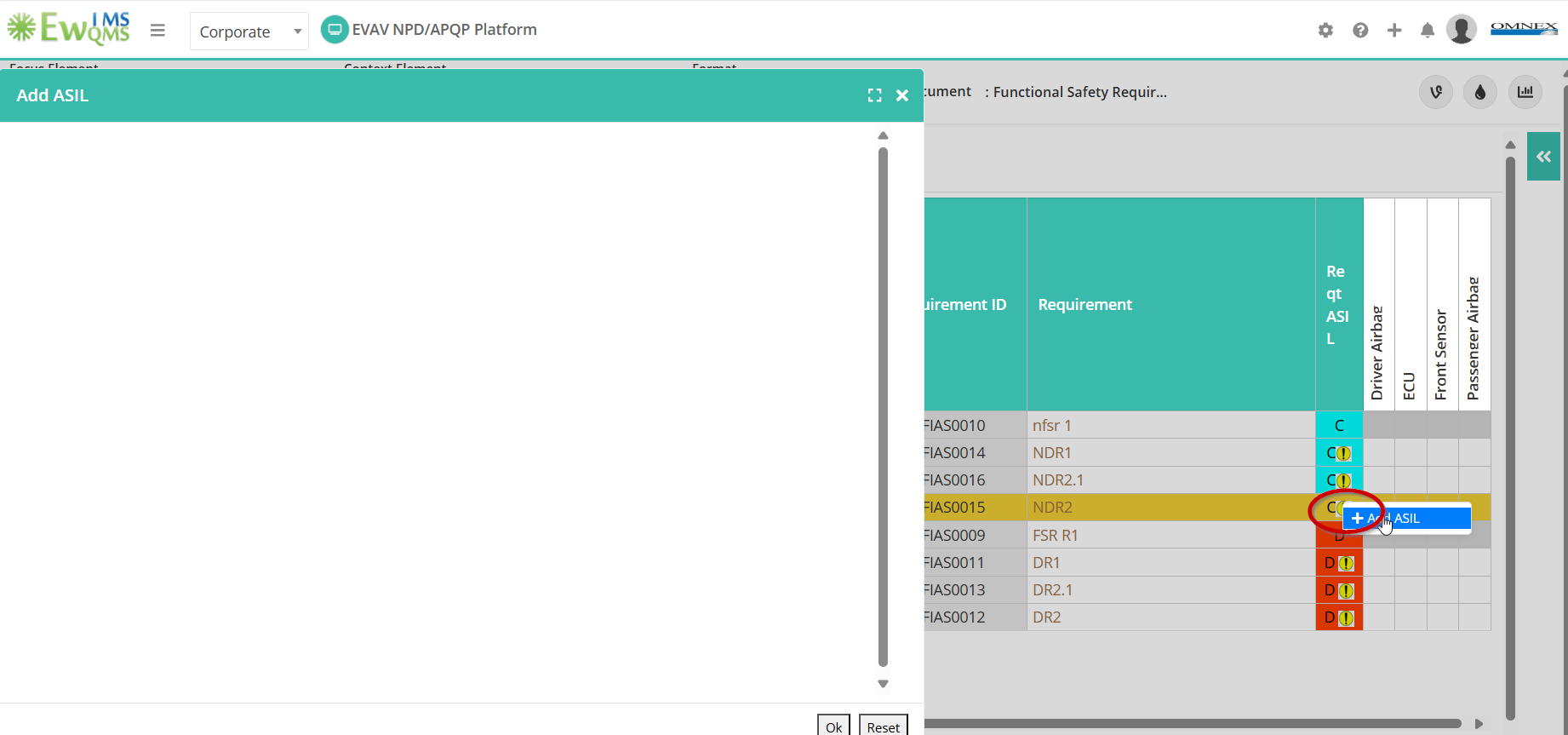

| clipboard-202410241124-f0b6n.png (108 KB) clipboard-202410241124-f0b6n.png | empty 'Add ASIL' pop-up |
Updated by Manivannan Uppiliappan 7 months ago
- Status changed from Open to Fixed in Dev
Updated by Manivannan Uppiliappan 7 months ago
- Status changed from Fixed in Dev to Resolved
