Bug #29152
closedFSR - Incorrect ASIL Values Displayed in 'Reqst ASIL' Columns After second level Function Decomposition
0%
1.Log into FSR
2.Locate a safety goal with Standard ASIL Value D
3.Decompose into 2 functions and add asils as A and C
4.Decompose ASIL C function into 2
5.Observe the Reqt asil column
6.Perform add asil on the newly decomposed functions like ASIL A and B
7.Observe the changes
Description

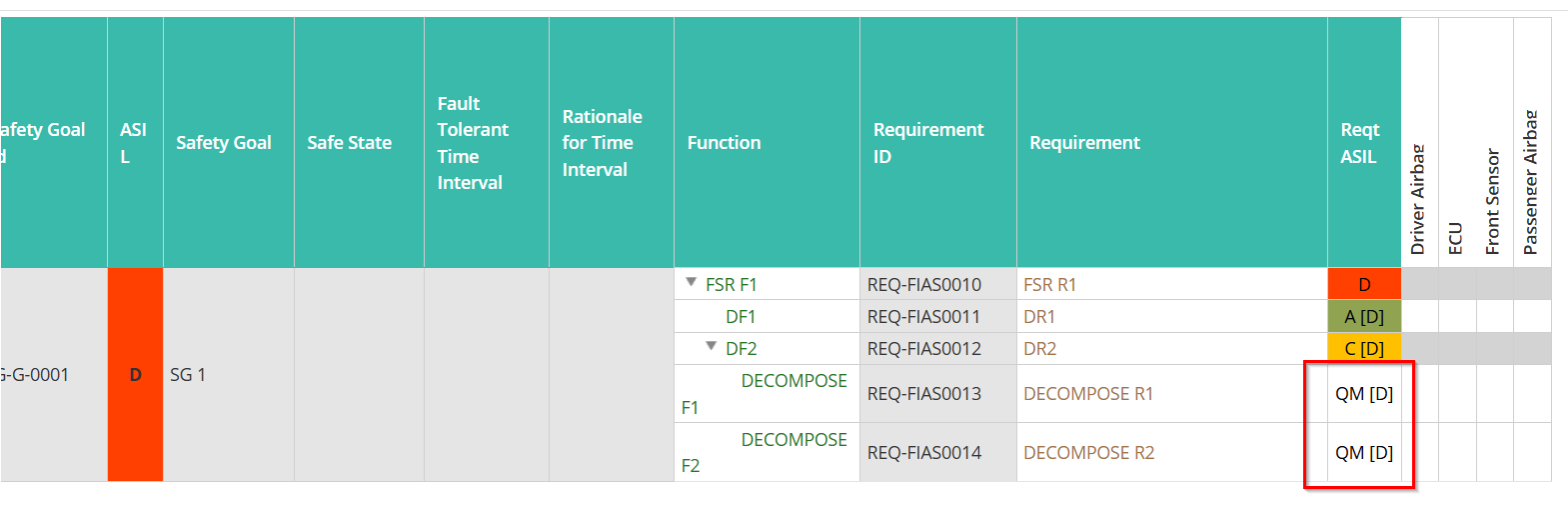

1.I decomposed an FSR function into two functions. One of those functions was further decomposed into two additional functions. However, the 'reqst asil' column is showing the super parent's asil value in brackets instead of the immediate parent's asil value.

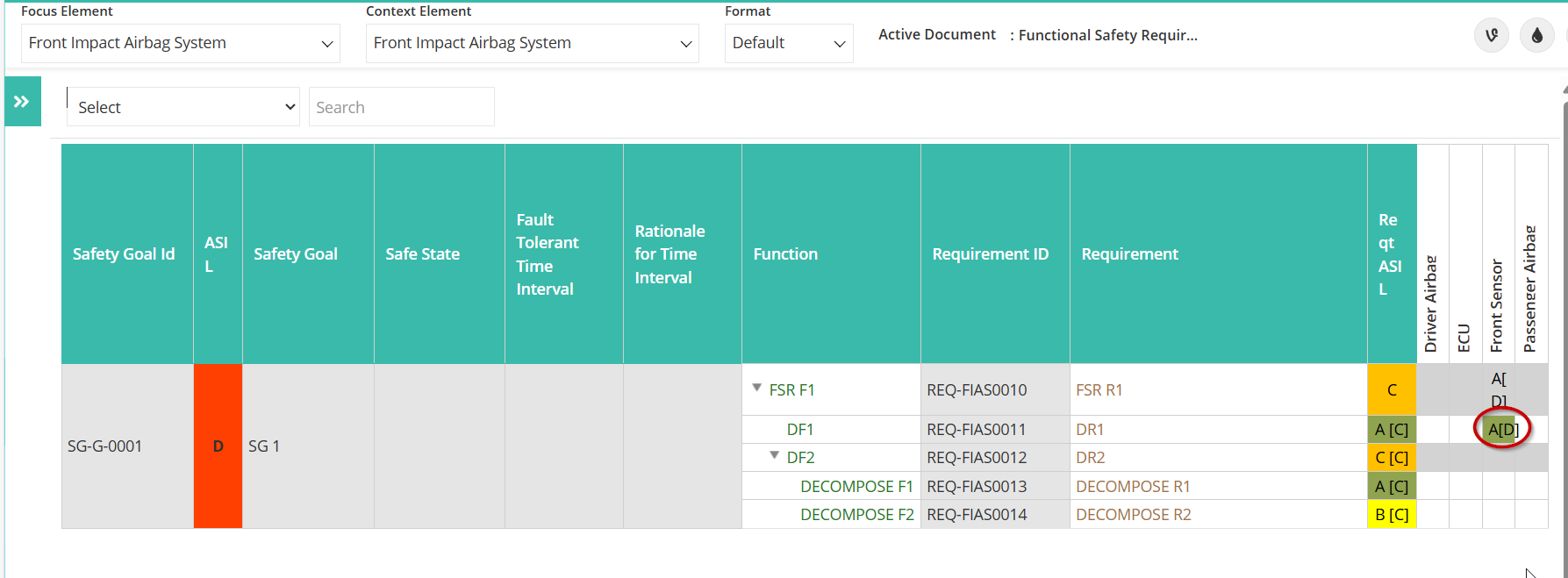

2.When I performed 'Add ASIL' on the second-level decomposed functions, the 'Reqt ASIL' column of the super parent also changed to incorrect value.
3.While allocating ASILs, correct value displays
4.But TSR doesnt display allocated Functions
Files
Updated by Vani Kunnatheri 9 months ago
- Subject changed from FSR - Incorrect ASIL Values Displayed in 'Reqst ASIL' Columns After second level Function Decomposition to FSR - Incorrect ASIL Values Displayed in 'Reqst ASIL' Columns After second level Function Decomposition
- Description updated (diff)
Updated by Manivannan Uppiliappan 8 months ago
- Status changed from Open to Resolved
